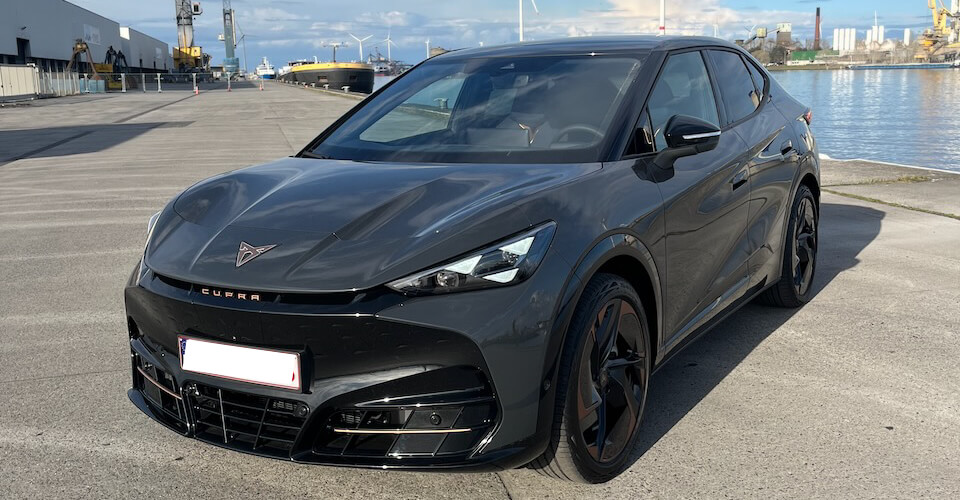

We recently received our new car. A Cupra Tavascan.
As all cars these days it has an app for your phone. Which is fine. But it is just another app. When I am at home I just want to see everything in one place: Home Assistant.
I use https://github.com/daernsinstantfortress/cupra_we_connect. Which I installed through HACS.
And for visualizing the data I use: https://ngocjohn.is-a.dev/vehicle-status-card/
The full config for this card is:
type: custom:vehicle-status-card
button_card:
- button:
icon: mdi:battery-charging-30
primary: Charging
secondary:
state_template: ""
entity: sensor.cupra_tavascan_remaining_charging_time
color: |
{% if states('sensor.cupra_tavascan_charge_rate')|float(0) > 0 %}
green
{% endif %}
button_type: default
card_type: custom
custom_card:
- type: entities
entities:
- entity: sensor.cupra_tavascan_state_of_charge
name: Current Charge
- entity: sensor.cupra_tavascan_charge_rate
name: Charging Rate
icon: mdi:speedometer
- entity: sensor.cupra_tavascan_charge_power
name: Charge Power
- entity: number.cupra_tavascan_target_state_of_charge
name: Target Charge
icon: mdi:flag-checkered
- entity: sensor.cupra_tavascan_remaining_charging_time
name: Remaining Time
icon: mdi:battery-clock-outline
- entity: sensor.cupra_tavascan_charging_mode
name: Charging Mode
icon: mdi:battery-80
- entity: sensor.cupra_tavascan_charge_type
name: Charging Type
title: Charge information
button_action: {}
- button:
primary: Climate
secondary:
state_template: ""
entity: sensor.cupra_tavascan_remaining_charging_time
icon: mdi:fan
color: |
{% if states('sensor.cupra_tavascan_climatisation_state') != "off" %}
green
{% endif %}
button_type: default
hide_button: false
card_type: custom
custom_card:
- type: entities
entities:
- entity: sensor.cupra_tavascan_climatisation_state
name: State
icon: mdi:fan
- entity: binary_sensor.cupra_tavascan_front_window_heating_state
icon: mdi:heat-wave
name: Front window
- entity: binary_sensor.cupra_tavascan_rear_window_heating_state
name: Rear window
icon: mdi:heat-wave
- entity: number.cupra_tavascan_target_climate_temperature
name: Temperature
icon: mdi:speedometer
- entity: button.cupra_tavascan_start_climate
name: Start Climate
icon: mdi:play
- entity: button.cupra_tavascan_stop_climate
name: Stop Climate
icon: mdi:stop
- entity: sensor.cupra_tavascan_remaining_climatisation_time
name: Remaining Time
icon: mdi:fan-clock
title: Air Conditioning
button_action: {}
- button:
primary: Total distance
secondary:
"0":
entity: ""
attribute: ""
state_template: ""
entity: sensor.cupra_tavascan_odometer_in_kilometers
icon: mdi:map-marker-distance
notify: ""
button_type: action
hide_button: false
card_type: default
default_card: []
custom_card: []
button_action:
entity: ""
tap_action:
action: none
hold_action:
action: none
double_tap_action:
action: none
layout_config:
button_grid:
rows: 2
columns: 2
swipe: true
hide:
button_notify: false
buttons: false
images: true
indicators: false
mini_map: false
range_info: false
map_address: false
card_name: false
theme_config:
mode: auto
theme: default
section_order:
- header_info
- mini_map
- buttons
name: Cupra Tavascan
mini_map:
device_tracker: device_tracker.cupra_tavascan_tracker
path_color: ""
enable_popup: true
use_zone_name: false
map_zoom: 12
default_zoom: 12
auto_fit: true
indicators:
group: []
single:
- entity: binary_sensor.cupra_tavascan_engine_status
action_config:
entity: binary_sensor.cupra_tavascan_engine_status
tap_action:
action: more-info
hold_action:
action: none
double_tap_action:
action: none
- entity: binary_sensor.cupra_tavascan_overall_status
icon: ""
attribute: ""
action_config:
entity: ""
tap_action:
action: more-info
hold_action:
action: none
double_tap_action:
action: none
range_info:
- energy_level:
entity: sensor.cupra_tavascan_state_of_charge
icon: ""
range_level:
entity: sensor.cupra_tavascan_range_in_kilometers
attribute: ""
progress_color: "#48d126"
charging_entity: ""
